16-Channel Stage Interface Box - 翻译中...
16-Channel Stage Interface Box - 翻译中...
  • 16-Channel Stage Interface Box - 翻译中...

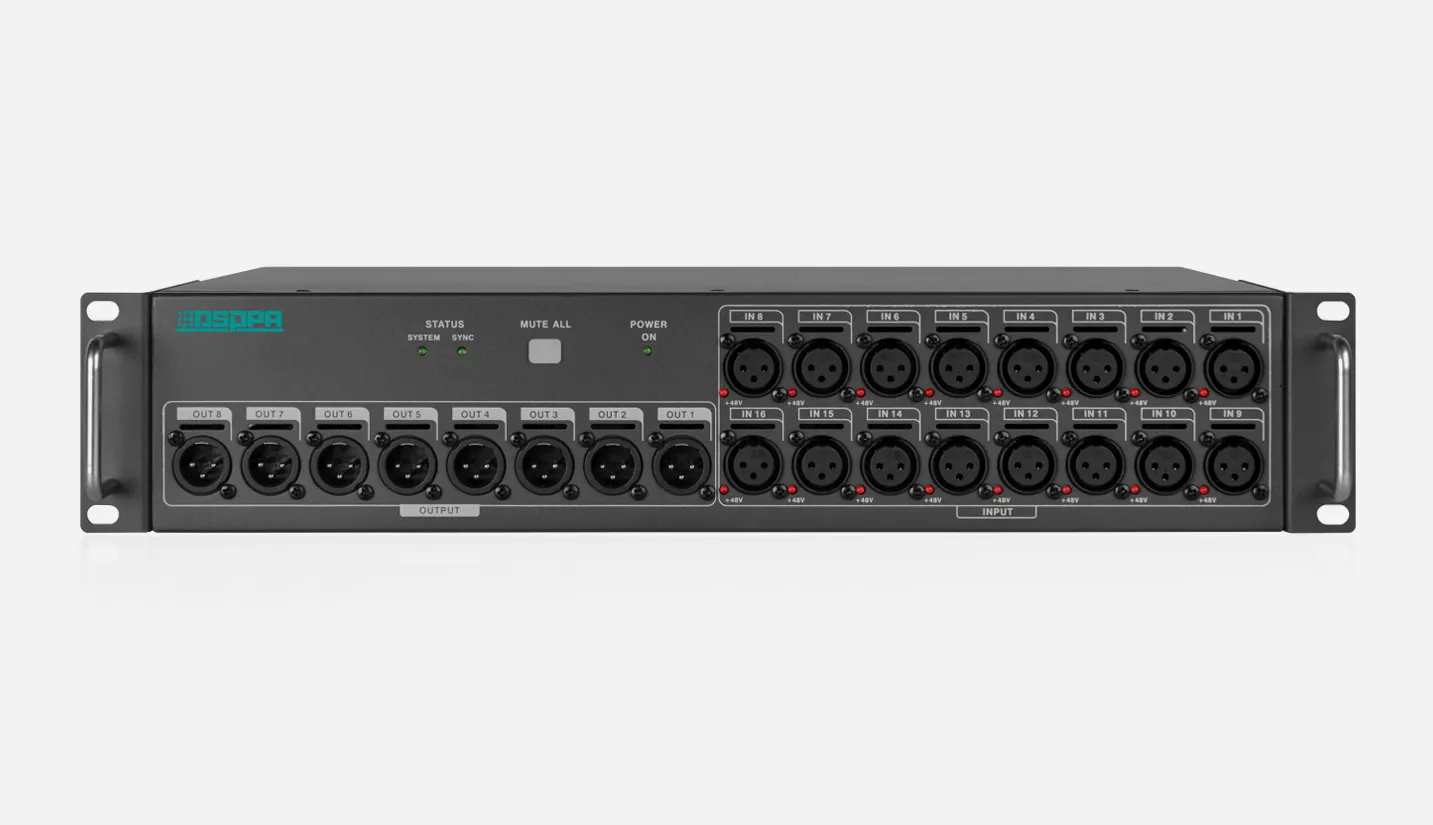

16-Channel Stage Interface Box - 翻译中... PDL16

翻译中...
Datasheet
Kumuha ng quoto
DETAILO
SPECS
翻译中...

Specifications of 16-Channel Stage Interface Box PDL16

Model

PDL16

Input

Input Impedance

5kΩ (unbalanced); 10kΩ (balanced)

Frequency Response

20Hz-22kHz (±1dB)

Maximum Input Level

+22dBu

Distortion

＜0.008%

Phantom Power

+48V (CH-1 to CH-16)

S/N Ratio

-113dB

Phase Difference

＜0.1deg

Channel Separation

110dB

Delay

0-500ms

Dynamic Range

-114dB

Output

Output Impedance

＜100Ω

Maximum Output Level

+21dBu

Noise Floor

-86dBu

Hardware

Power Supply

100-240V (50/60Hz)

Power Consumption

≤35W

Dimensions (W×D×H)

Product dimensions: 482*285*90mm; Package dimensions: 595*445*170mm

Weight

Net weight: 3.94kg; Gross weight: 5.48kg

Accessories

Power Cord
