Model | D6283II | |||
Camera Parameters | Lens | 10× Optical Zoom | 20× Optical Zoom | 30× Optical Zoom |
Image Sensor | 1/2.7'' Exmor CMOS | 1/2.8'' Exmor CMOS | 1/2.8'' Exmor CMOS | |
Effective Pixel | Approx. 2.38 Megapixels | Approx. 3.27 Megapixels | Approx. 3.75 Megapixels | |
Focal Length | f/5.1mm-51mm, F=1.6(W)-3.5(T) | f/4.7mm-94mm, F=1.6(W)-3.5(T) | f/5.2mm-148.4mm, F=1.3(W)-4.8(T) | |
Horizontal Viewing Angle | Approx. 72° | Approx. 60.2° | Approx. 65° | |
Minimum Illumination | 0.5 lux / 0.095 lux | |||
Shutter | 1 to 1/10,000 sec | |||
Noise Reduction | 2D & 3D Digital Noise Reduction | |||
Mirror/Flip | Supported | |||

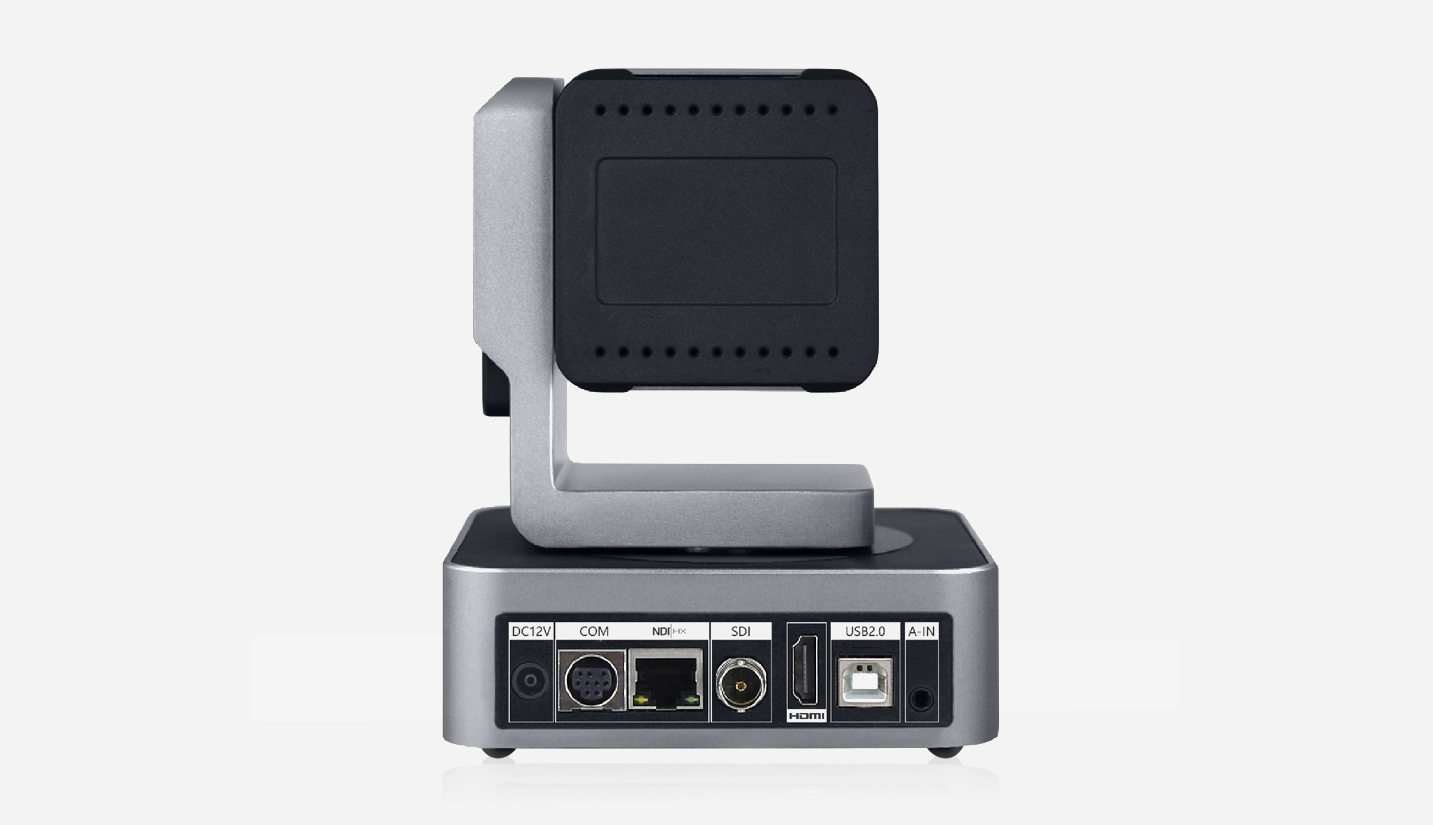

Other Parameters | HD Video Output | USB 2.0×1, HDMI×1, IP (Real-time Streaming)×1, 3G-SDI×1 | ||
Audio Input | 1-ch 3.5mm Audio Interface | |||
Communication Interface | RS232 IN/OUT, RJ45, RS485 | |||
Power Interface | DC 12V JEITA Standard or PoE Power Supply (Power over Ethernet) | |||
Operation | Horizontal Rotation | -178°~+178° | ||
Vertical Rotation | -30°~+90° | |||
Max. Preset Positions | Supports up to 9 Remote Controllers | |||
Supports up to 255 Devices via VISCA Protocol | ||||
Product Dimension(L×W×H) | 120mm×120mm×145mm | |||
Working Temperature | -10°~+50° | |||
Net Weight | 1.4kg | |||
Installation Method | Wall Mount, Ceiling Inverted Mount, Tripod Mount | |||
