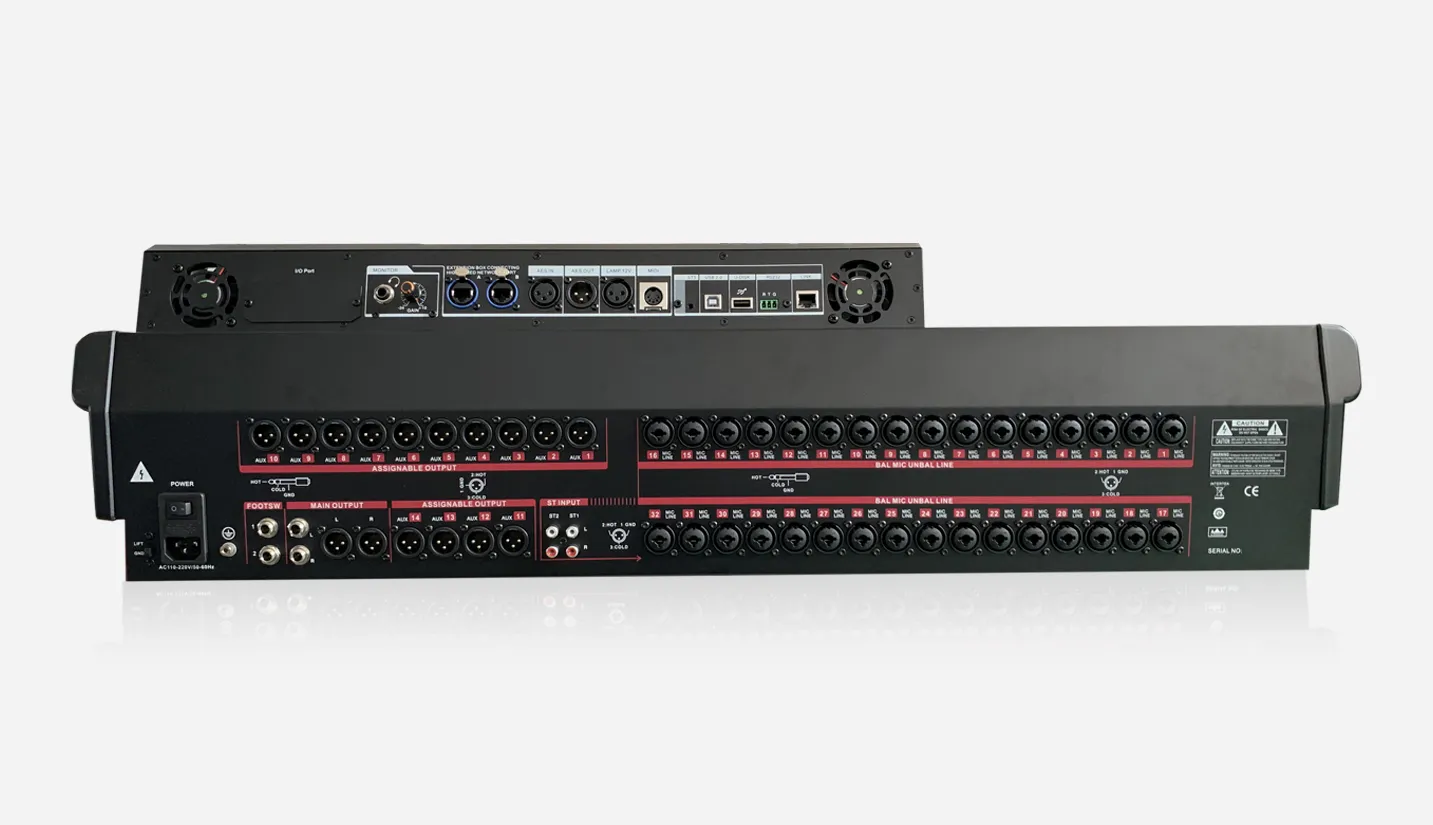

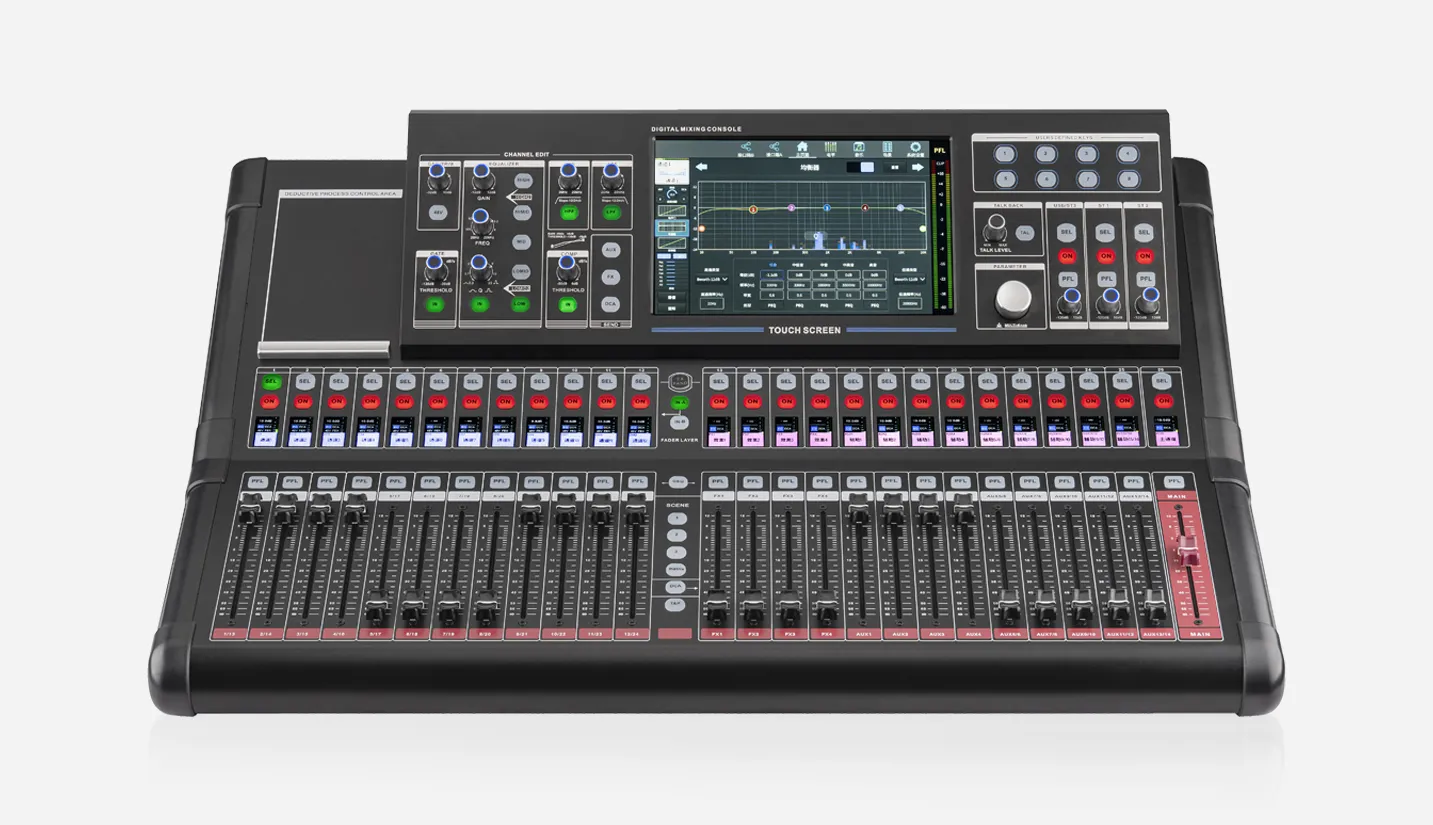

Model | DM332 |
Full Processing I/O | Supports 76 input and 36 output channels |
Local Input / Output | Inputs: 42 channels (38 analog + 4 digital): • 32 MIC/Line inputs; • 2 stereo 3.5mm RCA inputs (4 channels); • 1 stereo 3.5mm headphone input (2 channels); • 2 stereo digital inputs (sound card, MP3, AES; 4 channels); Outputs: 20 channels: • Main L/R output; • 14 AUX outputs (AUX1–AUX14); • 1 stereo headphone monitoring output; • AES output |
Signal Expansion | Connect up to 2 stage boxes; supports 32×32 network audio and multitrack recording |
Display | 33-channel TFT screen with customizable names and colors (Chinese supported) |
Linked Channels | Linked adjustment for odd/even or A/B channels |
Phantom Power | +48V per MIC channel, individually switchable and savable |
Channel Processing | Compressor, gate, HP/LP filters, 5-band EQ, delay, pan |
Faders | 33 motorized 100mm faders (A/B layers) |
Groups | 8 user keys, 8 DCA groups, 8 mute groups |
Feedback Suppression | 32-channel independent management |
Signal Generator | Pink/white noise or sine wave; routable to any output |
RTA & Auto Mixing | Built-in real-time spectrum (Editable color) and auto mixing |
Built-in Sound Card | For playback and recording via phone, iPad, MP3, or PC |
Scene Mangement | 4 quick recall modes, 100 scene memories with seamless switching |
DSP Effects | Dual DSP processors with preset effect modes |
Factory Reset | One-click factory reset |
Control Interface | RS232/TCP control with open protocol |
Touch Screen | 10.1” 1280×800 HD capacitive touchscreen |
