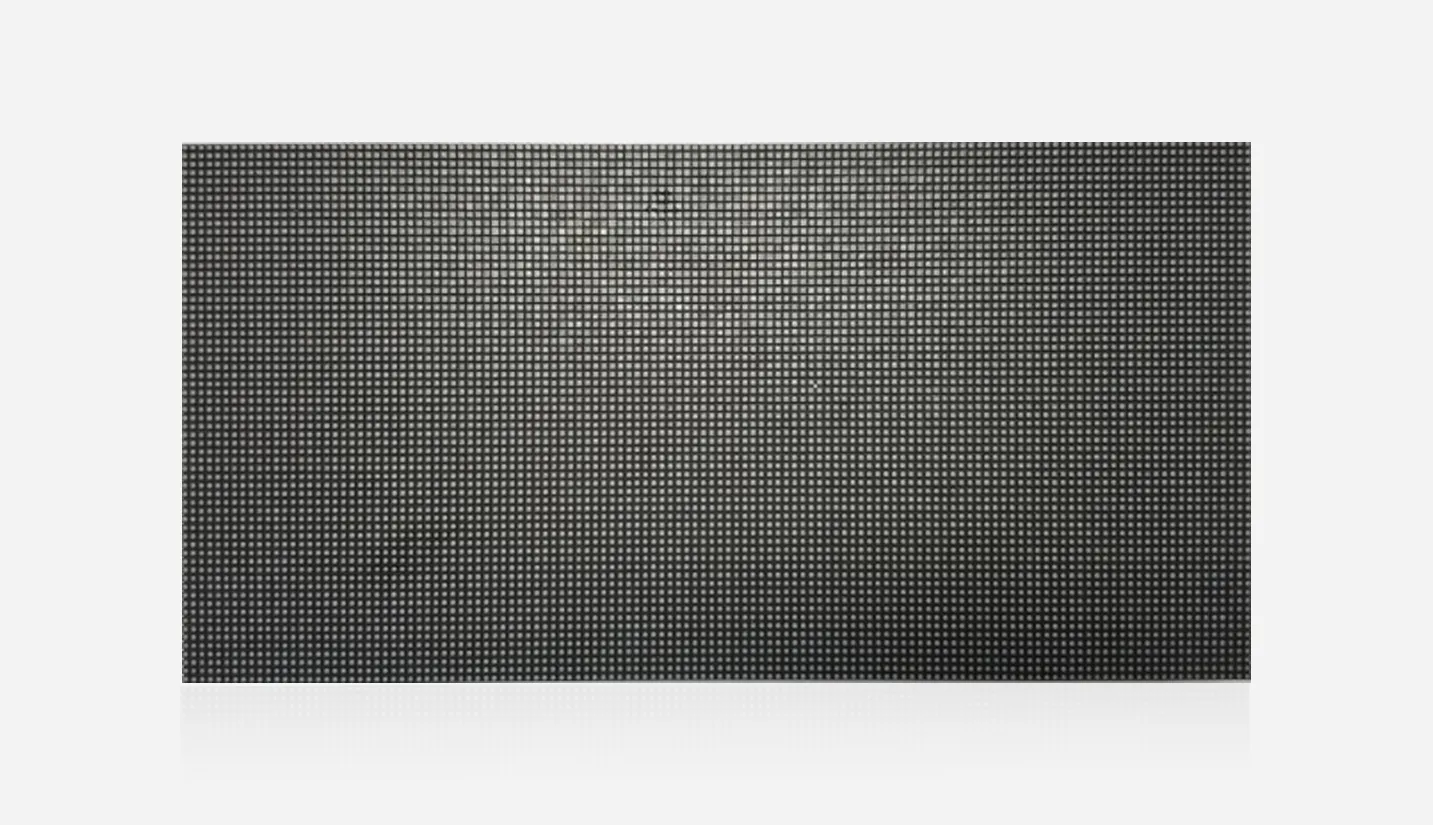

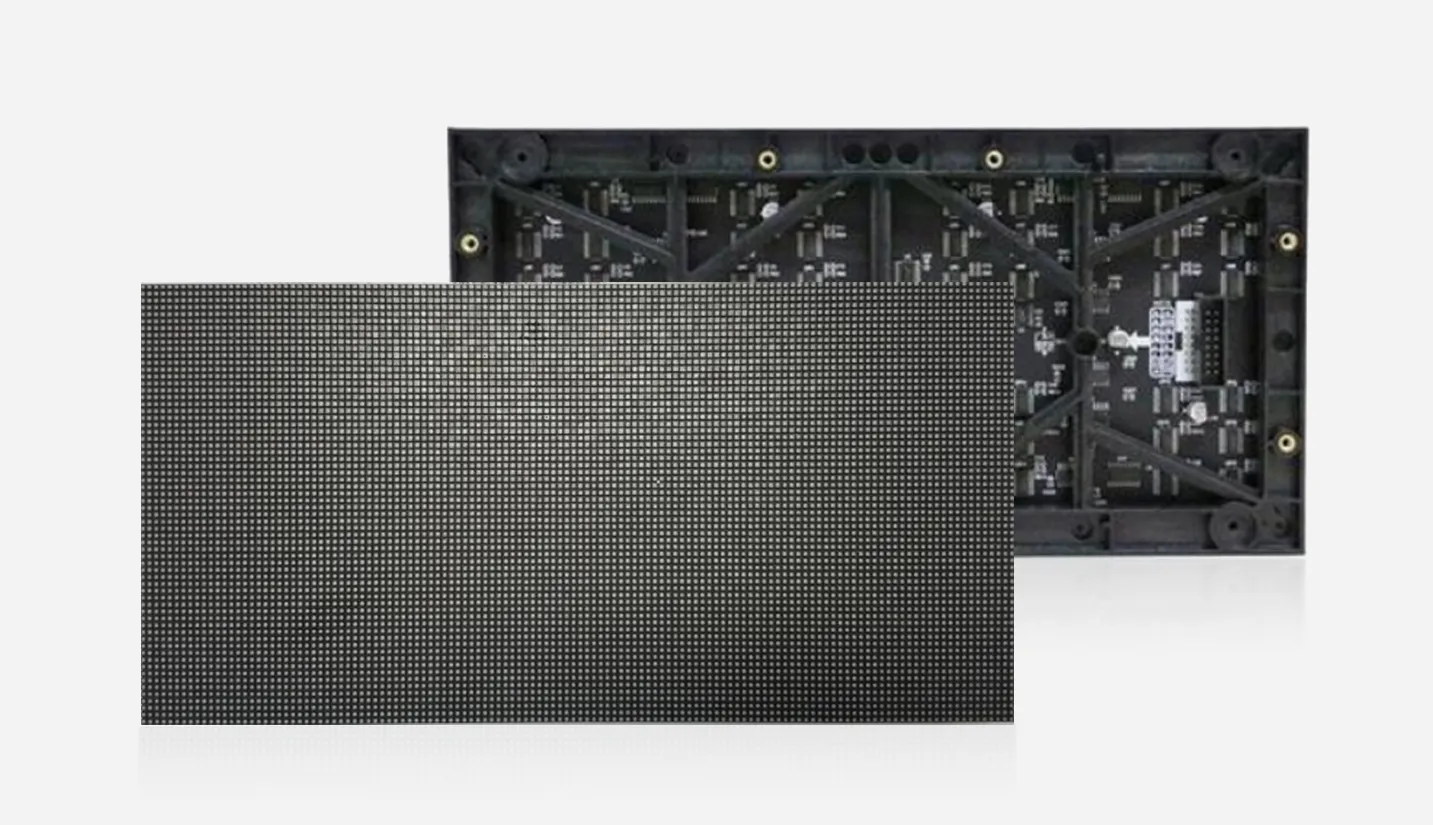

Indoor P2 Full-Color LED Module - 翻译中...

Indoor P2 Full-Color LED Module - 翻译中... DP-N200BC

Name: Indoor P2 Full-Color LED Module - 翻译中...
Brand: 2025 Guangzhou DSPPA Audio Co., Ltd.

翻译中...

Datasheet

Kumuha ng quoto

DETAILO

SPECS

翻译中...

Product Model	Color	IF (mA) TEST	Rd (nm) Typ	Iv (mcd) Typ	Vf (V) Typ	View Angle (deg.)
SMD1515	Red	8	620	50	2.0	110
	Green	5	525	170	3.0	110
	Blue	3	470	23	3.0	110

Pixel Pitch	2mm
Pixel Density	250000dots/㎡
Unit Board Resolution	128 × 64 pixels
Unit Board Dimensions	256mm × 128mm × 14.6mm (Width×Height×Thickness)
Unit Board Weight	0.4kg
Drive Type	16-bit Constant Current (PWM)
Scanning Method	1/32 scan
Operating Voltage	DC5V±10%
Maximum Current	5A (Typical)①
Maximum Power Consumption	25W (Typical)②
Power Interface	VH4
Signal Interface	HUB75D (IDC16)
Max. Brightness	≥800cd/㎡
Color Temperature	1000K-20000K (Adjustable)
Field of View	170°
Optimal Viewing Distance	≥2m
Grayscale Level	≥16 Bit
Brightness and Chroma Calibration	Support
Refresh Frequency	≥3840Hz③
Operating Temperature	Indoor
Brightness Range	0-255 (Adjustable)
Service Life	100,000 Hours
Operating Temperature	-20℃-60℃
Operating Humidity	10%-90%RH Non-condensing
Storage Temperature	-40℃- 80℃
