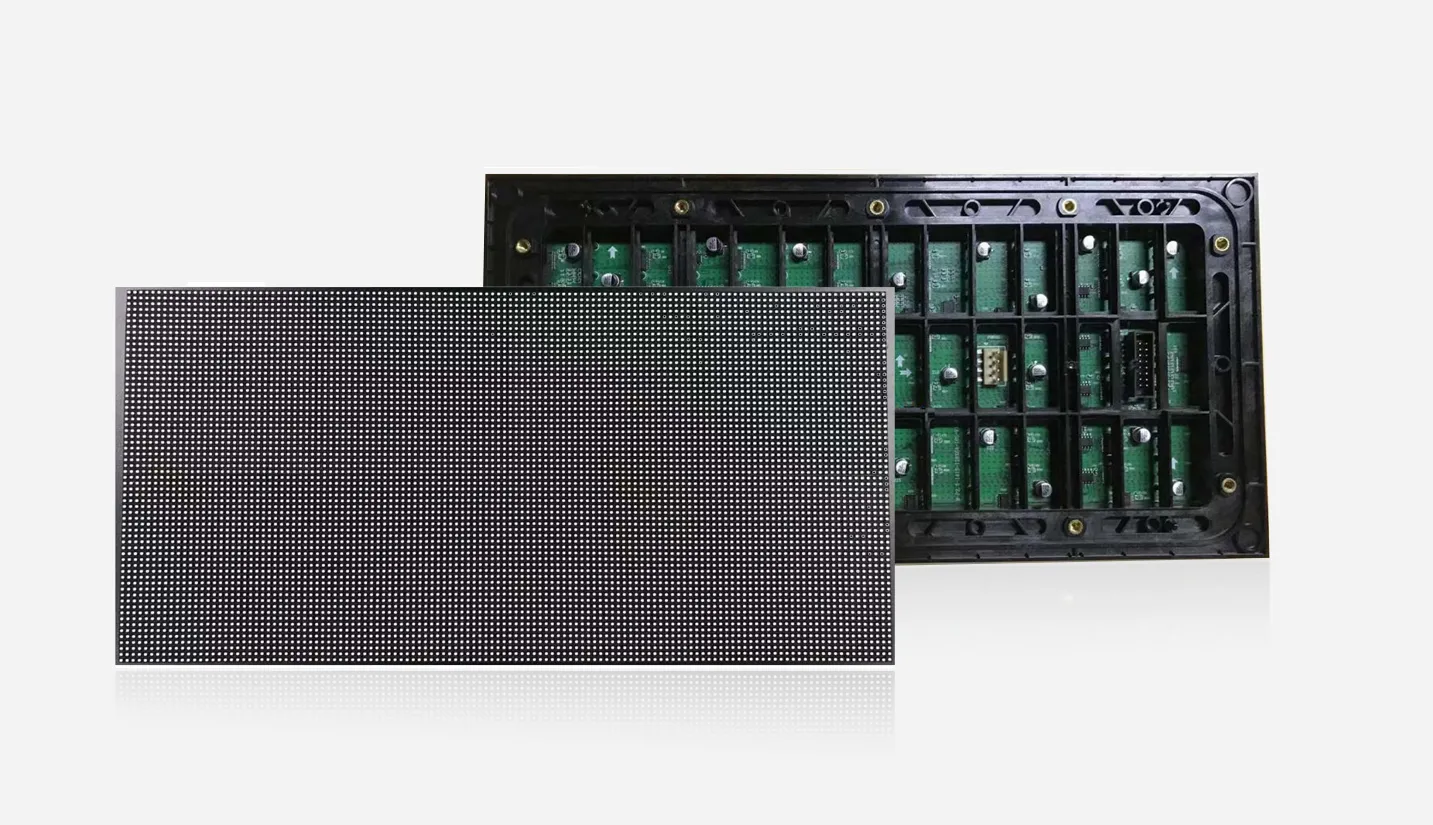

Outdoor P2.5 Full-Color LED Module (1/16 Scan) - 翻译中... DP-W250GF

Name: Outdoor P2.5 Full-Color LED Module (1/16 Scan) - 翻译中...
Brand: 2025 Guangzhou DSPPA Audio Co., Ltd.

翻译中...

Kumuha ng quoto

DETAILO

SPECS

翻译中...

Product Model	Color	IF (mA) TEST	Rd (nm) Typ	Iv (mcd) Typ	Vf (V) Typ	View Angle (deg.)
SMD1415	Red	15	620	400	2.0	110
	Green	10	525	650	3.0	110
	Blue	8	470	95	3.0	110

Pixel Pitch	2.5mm
Pixel Density	160000dots/㎡
Module Resolution	128 × 64 pixels (Width×Height)
Module Dimensions	320mm × 160mm × 18mm (Width×Height×Thickness)
Module Weight	Approx. 350kg
Driving Method	Constant Current
Scanning Method	1/16 scan
Operating Voltage	DC5V±10%
Maximum Current	15A (Typical)①
Maximum Power Consumption	75W (Typical)②
Power Interface	VH4
Signal Interface	HUB75E (IDC16)
Brightness	≥6000cd/㎡
Color Temperature	9000K±500K (Adjustable)
Viewing Angle	≤140°
Optimal Viewing Distance	≥2.5m
Gray Scale Level	14 Bit
Brightness and Chromaticity Calibration	Support
Refresh Rate	≥1920Hz③
Supported Resolution	128 × 256 pixels (Width×Height)
Brightness Adjustment Range	0-255 (Adjustable)
Lifespan	100,000 Hours
Operating Temperature	-20℃-60℃
Operating Humidity	10%-90%RH Non-condensing
Storage Temperature	-40℃- 80℃
