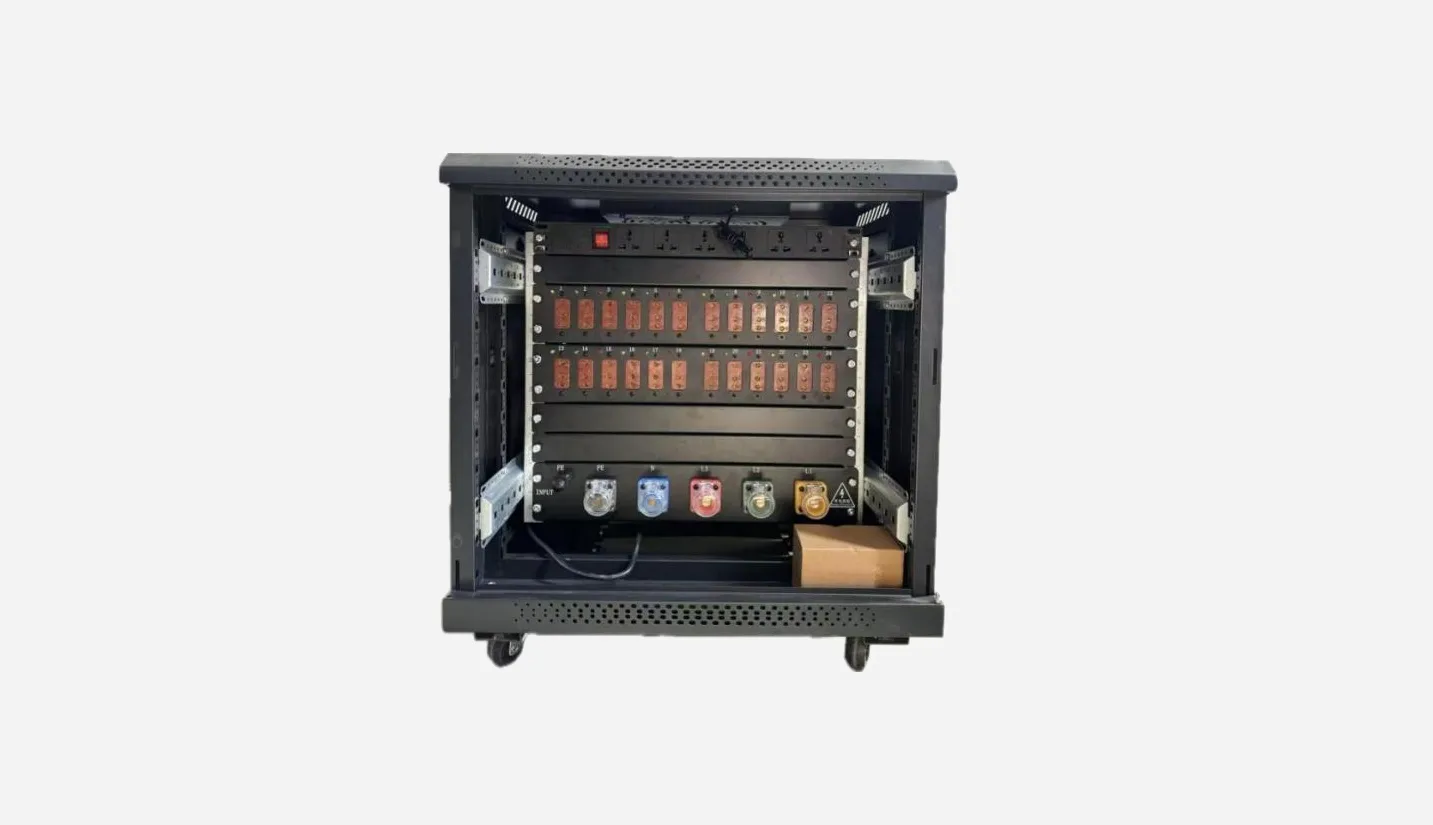

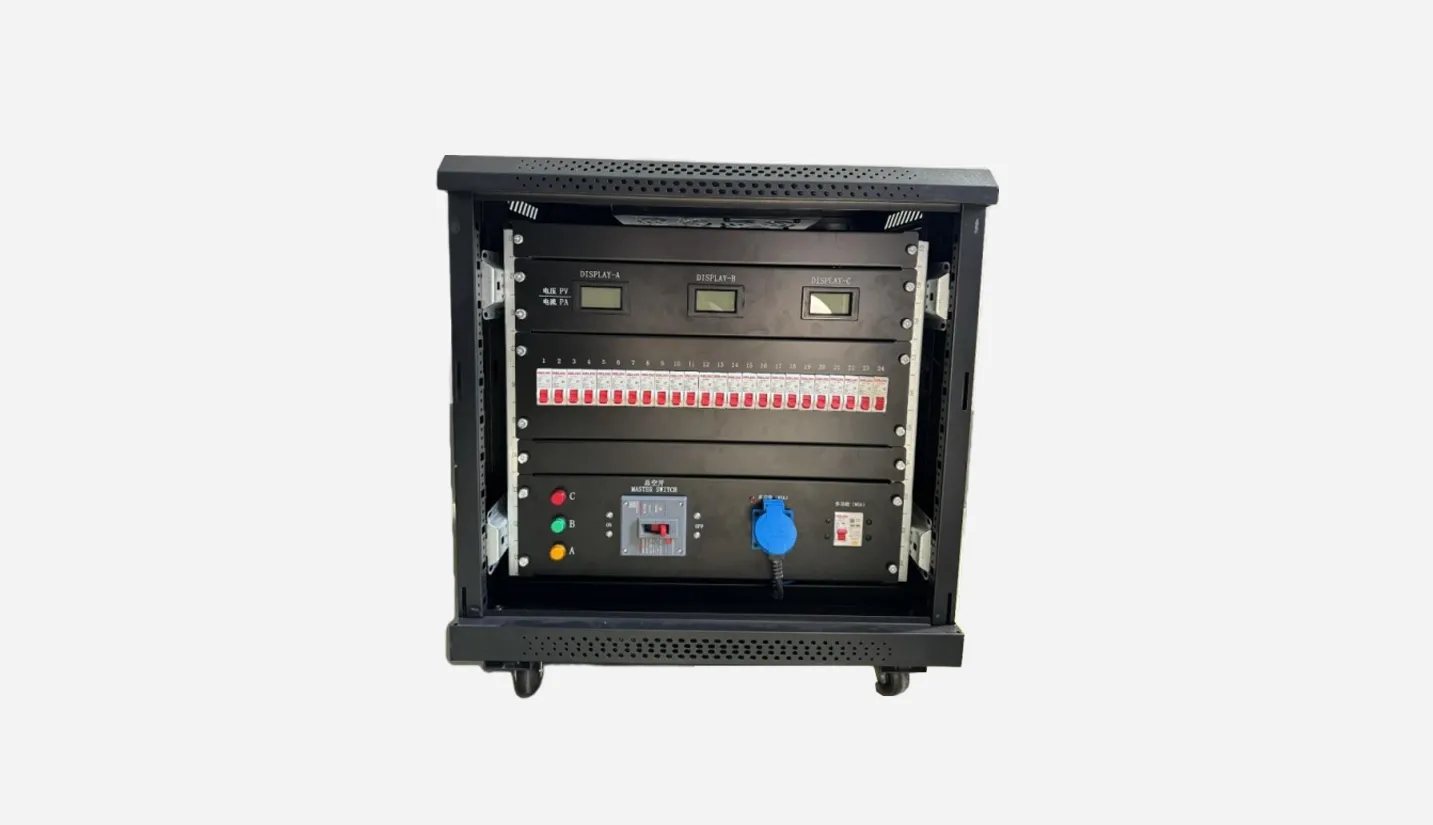

Model | ZT2404-P1 |
Power Supply | Three-phase five-wire system AC380V ±10%, Frequency 50Hz / 60Hz ±5% |
Total Power | Maximum 96 kW, suitable for various loads |
Protection | Built-in 125A molded case circuit breaker with overload and short-circuit protection, high breaking capacity air switch |
Monitoring | Independent monitoring of three-phase voltage and current |
Indicators | Three-phase A / B / C indicator lights |
Dimensions | International standard 10U |
Input Connector | 200A powerlock input |
Output Connector | 3-core 32A bakelite sockets |
