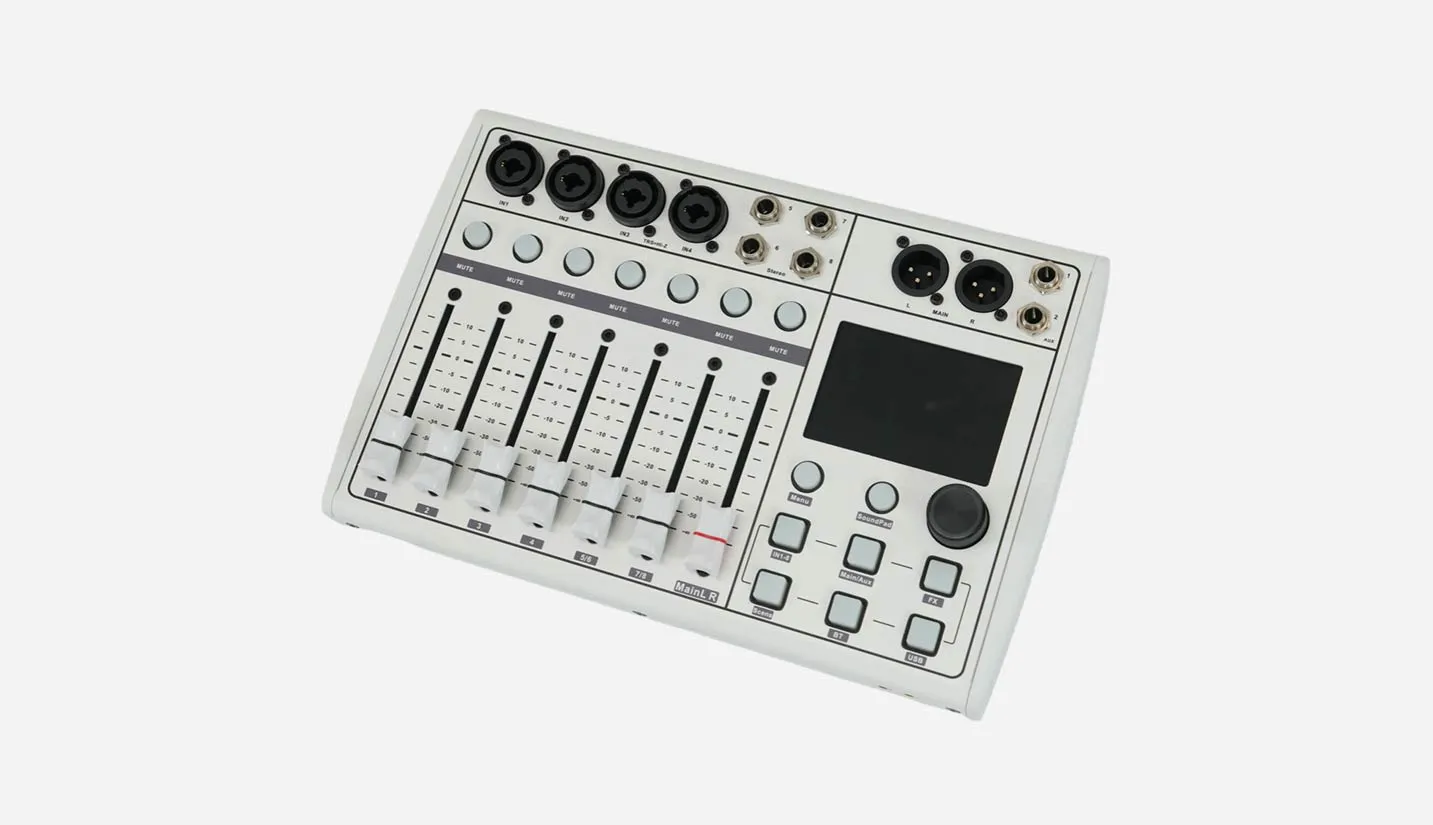

Digital Mixing Console with USB Audio Interface - 翻译中... CM3108

Input Interfaces

8 analog inputs: IN1–IN4 electronically controlled gain microphone preamp inputs with XLR/TRS combo connectors; IN3–IN4 TRS inputs support HI-Z sources; channels 5–6 are balanced stereo TRS inputs; channels 7–8 are unbalanced stereo RCA inputs; 1 stereo USB audio interface; Bluetooth 5.2 stereo input

Output Interfaces

Main R/L outputs; 2 AUX auxiliary output channels

Display

3.5-inch capacitive touchscreen LCD, displaying input/output levels, function operation, and other information

Control Interfaces

Wi-Fi and hotspot

Input Channels

Function modules: Delay, Polarity, Phantom Power, 4-band Parametric EQ, Compressor, Noise Gate

Output Channels

Function modules: Delay, 4-band Parametric EQ, Limiter

Sampling Rate

48 kHz

Bit Depth

24-bit

Signal-to-Noise Ratio (SNR)

105 dB

Frequency Response

20 Hz–20 kHz, ±0.2 dB

Total Harmonic Distortion (THD)

<0.003% @ 4 dBu, A-weighted

Maximum Input Level

+18 dBu, balanced

Maximum Output Level

+18 dBu, balanced

Phantom Power

DC 48 V

A/D Dynamic Range

109 dB

Input-to-Output Dynamic Range

107 dB

Input Impedance

2 kΩ

Output Impedance

100 Ω

Residual Noise

≤−88 dBu, A-weighted

Channel Separation

100 dB @ 1 KHz

Common Mode Rejection Ratio (CMRR)

>60 dB @ 50 Hz

System Latency

≤6 ms

Filters

High-pass filter, Low-pass filter

Equalizer

Parametric EQ: Frequency: 20 Hz–20 kHz; Gain: −15 to +15 dB; Q: 0.4–4. Graphic EQ: Frequency: 20 Hz–20 kHz; Gain: −15 to +15 dB

Effects

Reverb

Operating Voltage

AC 100–240 V, 50/60 Hz

Maximum Power Consumption

12 W

Operating Temperature & Humidity

0°C–55°C, 10%–90% RH, non-condensing

Installation

Desktop

Power Supply

External power adapter, DC 5 V / 3 A output

Product Dimensions (L × W × H)

282 × 187 × 53.5 mm

Net Weight

2.2 kg (±0.5%)

Package Dimensions (L × W × H)

369 × 229 × 82 mm

Gross Weight

2.5 kg
