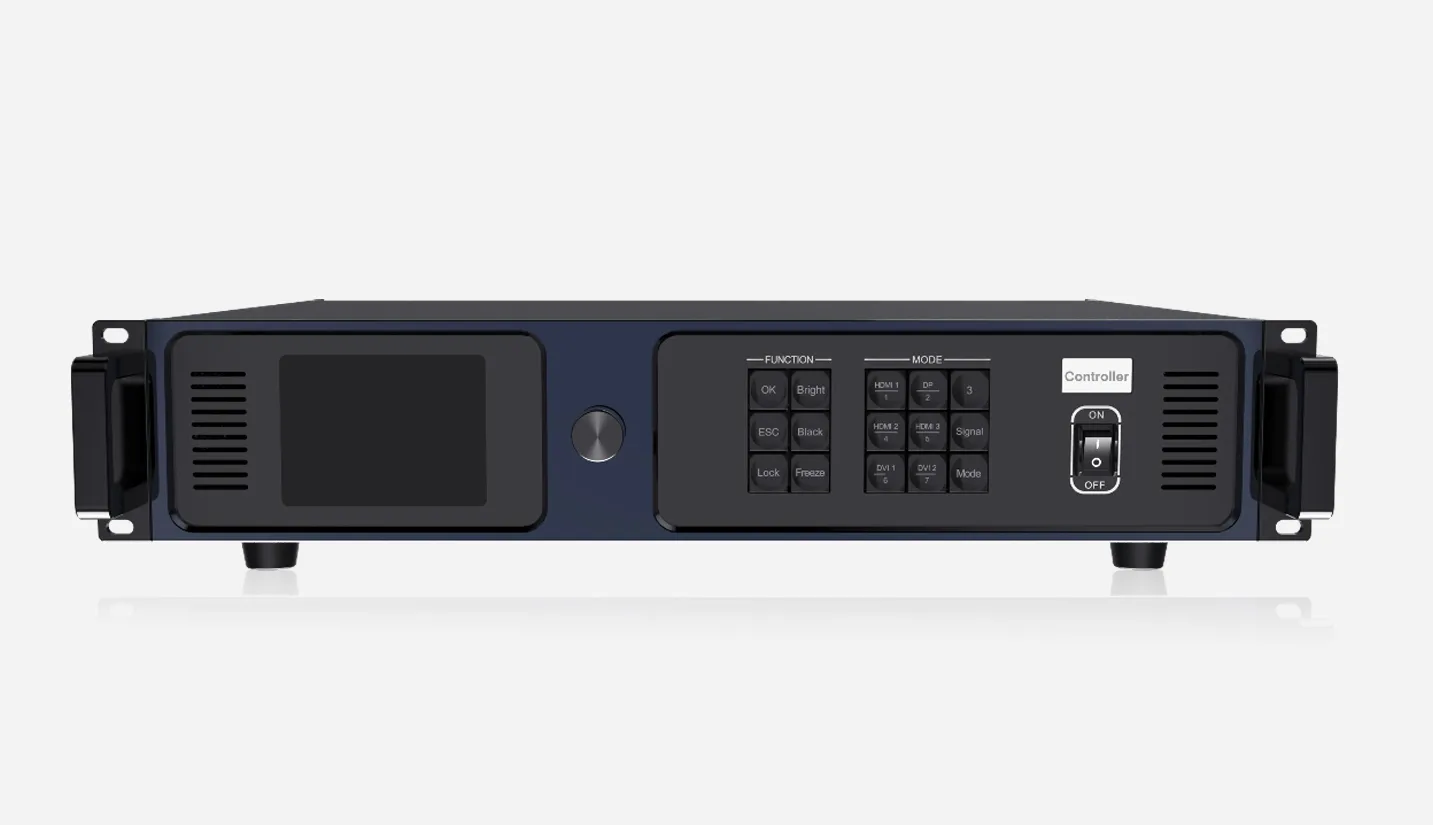

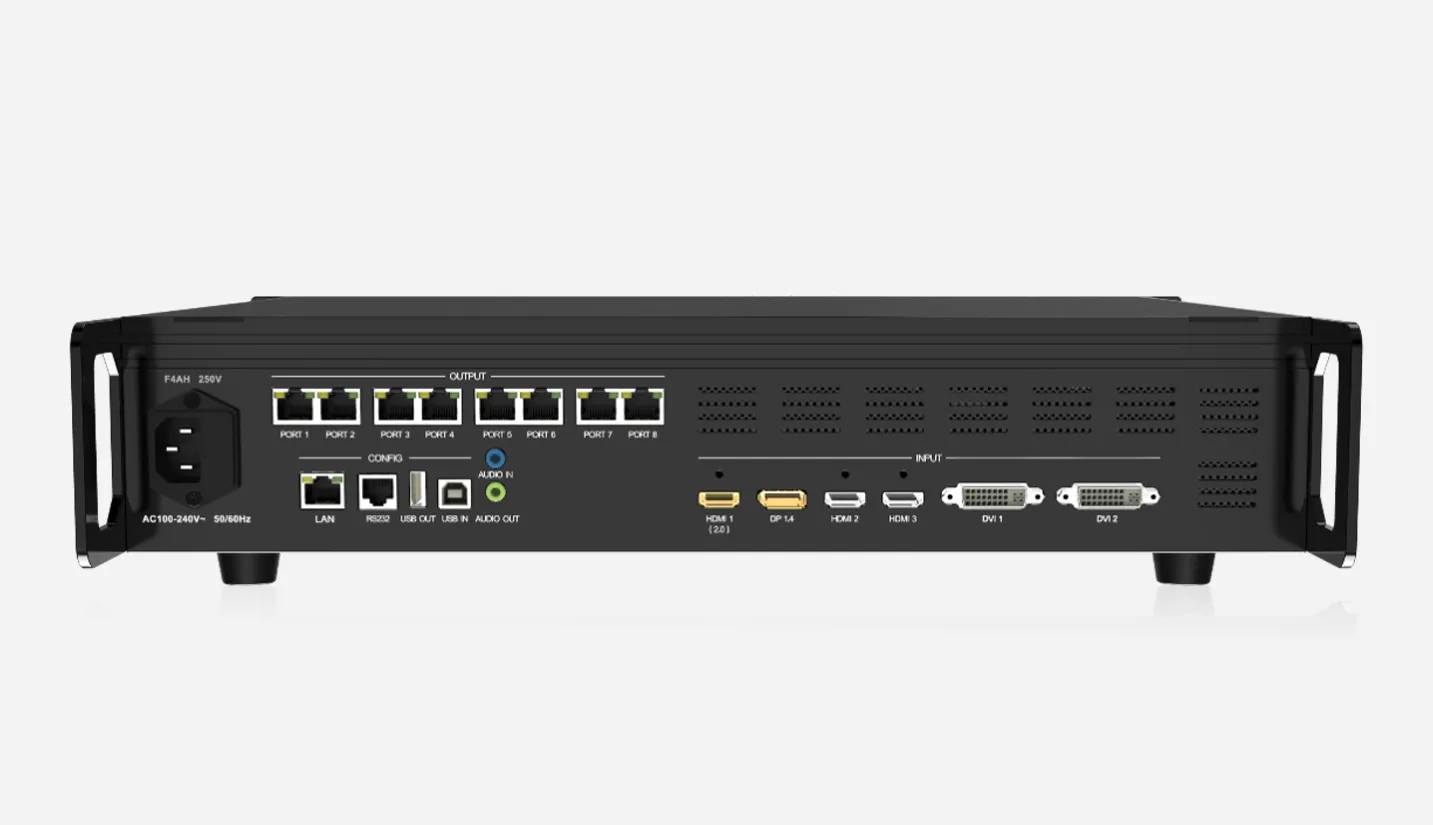

LED Video Controller - 翻译中... DP-X8E

Name: LED Video Controller - 翻译中...
Brand: 2026 Guangzhou DSPPA Audio Co., Ltd.

翻译中...

Datasheet

Kumuha ng quoto

DETAILO

SPECS

翻译中...

Specifications of LED Video Controller DP-X8E

Model				DP-X8E
Size				2U
Electrical Specifications		Input Voltage		AC100~240V, 50/60Hz
		Power Consumption		50W
Operating Environment		Temperature		-20℃~70℃/-4°F~158°F
		Humidity		0%RH~80%RH, non-condensing
Storage Environment		Temperature		-30℃~80℃/-22°F~176°F
		Humidity		0%RH~90%RH, non-condensing
Device Specifications		Dimensions		W×H×L/482.6mm×88.0mm×414.1mm/19"×3.5"×16.3"
		Net Weight		4.8kg/10.58lbs
Packing Specifications		Dimensions		W×H×L/525.0×150.0×495.0mm3/20.7"×5.9"×19.5"
		Net Weight		1.8kg/3.97lbs
Technical Parameters
HDMI 2.0(A)
Standard	HDMI 2.0 specification, EIA/CEA-861 standard
	Backward compatible with HDMI 1.4 and HDMI 1.3
Input	Format		Maximum Input Resolution
	8bit		RGB444		4096×2160@60Hz
			YCbCr444
			YCbCr422
	Frame Rate		23.98/24/25/29.97/30/50/59.97/60/120/144Hz
	Support audio input
DP 1.4
Standard	DP 1.4 specification, support EDID
Input	Format		Maximum Input Resolution
	8bit		RGB444		4096×2160@60Hz
			YCbCr444
			YCbCr422
	Frame Rate		23.98/24/25/29.97/30/50/59.97/60/120/144Hz
	Support audio input
HDMI 1.4
Standard	HDMI 1.4 specification, HDCP1.4 compliant
Input	Format		Maximum Input Resolution
	8bit		RGB444		1920×1200@60Hz
			YCbCr444
			YCbCr422
	Frame Rate		23.98/24/25/29.97/30/50/59.97/60Hz
	Support audio input
DVI
Standard	Support HDCP
Input	Format		Maximum Input Resolution
	8bit		RGB444		1920×1200@60Hz
			YCbCr444
			YCbCr422
	Frame Rate		23.98/24/25/29.97/30/50/59.97/60Hz
