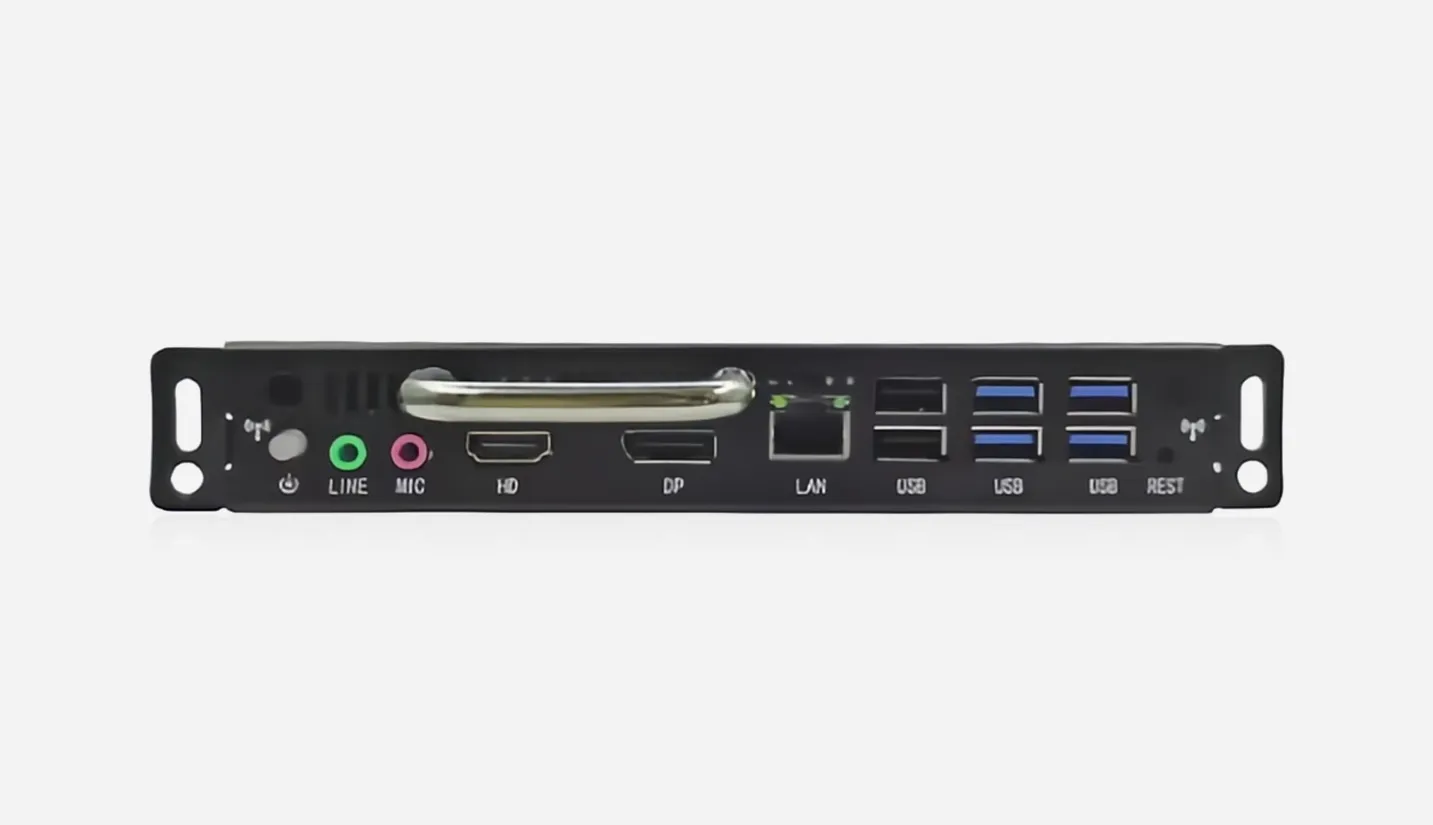

Model | DCP-87P1 | |
Basic Parameters | CPU | Intel Core 6th Gen Low-Power CPU Px6M-S60-i7: i7-6500U, i7-6600U |
Display | Intel Integrated HD Graphics | |
Audio | Cmedia HS-100B | |
Operating System | Windows 7/10/11, Linux | |
Network | 1×Realtek RTL8111H Gigabit Ethernet | |
Memory (Optional) | DDR4 SO-DIMM*2; Up to 32GB | |
Storage (Optional) | 1×SATA, 1×M.2 2280 SSD Interface, Support NVME | |
USB | 4×USB 2.0, 5×USB 3.0, | |
COM | 1 × TTL (Rear JAE Output) | |
Watchdog | Supported | |
Power-On Boot | BIOS: Supported | |
Font Interfaces | Power Switch | 1 × Power Button |
One-Key Recovery | 1 × Recovery Button | |
Display Interfaces | 1 × DP, 1 × HDMI | |
USB Interfaces | 2 × USB 2.0, 4 × USB 3.0 | |
Network Interface | 1 × Gigabit LAN (RJ45) | |
Audio Interfaces | 1 × Audio Input, 1 × Audio Output | |
Rear Interfaces | Power Interface | 1 × DC-In (Outer Ø 5.5 mm, Inner Ø 2.5 mm) |
Display Interface | 1 × HDMI, Supports 4K@60Hz (Requires Compatibility with a 4K 60Hz Daughter Card) | |
USB Interfaces | 2 × USB 2.0, 1 × USB 3.0 | |
Audio Interface | 1 × Audio Output Interface | |
Switch & COM Ports | 3 × JSW, 1 × TTL | |
Operating Environment | Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~70℃ | |
Humidity | 10%~90%RH, Non-Condensing | |
Other Parameters | Product Dimensions | 195mm (L) × 180mm (W) × 30/42mm (H) |
Product Weight | 1.5kg | |
WiFi Antenna | Single Antenna (Optional Dual Antenna) | |
Safety Lock | Yes | |
Cooling Method | Fan Cooling | |
Power Supply | 19V DC Adapter | |
